Panasonic Air conditioner (CS C12PKH)

SKU: SKU 10500228

Stock Qty: 3

62000 TK 76700 TK

Tags: AC

Product Information

Model	Indoor (50Hz)	CS-C12PKH
Model	Outdoor (50Hz)	(CU-C12PKH)
Cooling Capacity	Btu/h	12,000
Cooling Capacity	kW	3.52
EER	Btu/hW	11.2
Phase	ø	1
Electrical Data	Voltage (V)	230
	Running Current (A)	4.8
	Power Input (W)	1,070
Moisture Removal	L/h	2.0
Moisture Removal	Pt/h	4.2
Air Circulation (Indoor/Hi)	m³/min.	11.2
Air Circulation (Indoor/Hi)	ft³/min.	395

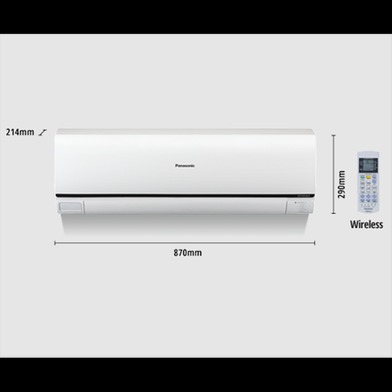

Dimensions	Height (mm)	290 (542)
	Height (inch)	11-7/16 (21-11/32)
	Width (mm)	870 (780)
	Width (inch)	34-9/32 (30-23/32)
	Depth (mm)	214 (289)
	Depth (inch)	8-7/16 (11-13/32)
Net Weight	kg	9 (27)
Net Weight	lb	20 (60)
Refrigerant Pipe Diameter	Liquid Side (mm)	ø 6.35
	Liquid Side (inch)	1/4
	Gas Side (mm)	ø 12.70
	Gas Side (inch)	1/2
Pipe Extension	Chargeless Pipe Length (m)	7.5
	Maximum Pipe Length (m)	15
	Maximum Elevation Length (m)	5
	Additional Refrigerant Gas* (g/m)	10
Power Supply		Indoor
Cleaner Air	nanoe-G	Yes
	Anti-Bacterial Filter	No
	Odour-Removing Function	Yes
	Removable, Washable Panel	Yes
	Catechin Air Purifying Filter	No
	Solar Refreshing Deodorizing Filter	No
Comfort	ECONAVI	Yes
	Temperature Wave	No
	AUTOCOMFORT	Yes
	Inverter Control	No
	Mild Dry Cooling	No
	Quiet Mode	Yes
	Powerful Mode	Yes
	Soft Dry Operation Mode	Yes
	Personal Airflow Creation	Yes
	Airflow Direction Control (Up Down)	No
	Manual Horizontal Airflow Direction Control	No
	Manual Airflow Direction Control (Left Right)	No
	Sleep Mode Auto-Control	No
	Automatic Operation Mode (Cooling)	Yes
Convenience	24-Hour Dual ON OFF Real Setting Timer	No
	24-Hour ON OFF Real Setting Timer	Yes
	12-Hour ON OFF Setting Timer	No
	LCD Wireless Remote Control	Yes
	Wired Remote Control	No
Reliability	Auto Restart	No
	Random Auto Restart (32 Restart Patterns)	Yes
	Blue Fin Condenser	Yes
	Long Piping (Numbers indicate the maximum pipe length)	15m
	Top-Panel Maintenance Access	Yes
	Self-Diagnostic Function	No

Specifications

QUICK OVERVIEW Econavi with Nanoe-G system Max 38% energy saving i Auto mode Horse Power: 1.5 HP In-Filter Deactivation 5 Features saving energy all at once Capacity: 1 TON: SKU 10500228 Price Tk. 76,700 Brand Panasonic Model CS C12PKH Type Split Indoor Type Wall Mounted Outdoor Model CU-C12PKH Capacity (Tons) 1.0 Ton Capacity (BTU) 12000 Technology Non-Inverter Compressor Rotary Indoor Noise Level 35 Turbo Mode No Color White Country of Origin Japan Country of Assemble Malaysia Power Supply (V-Hz) 220-240v Power Consumption (W) 1070 Weight 30.000000 Technology Used Econavi, Nanoeg Dimension (WxDxH) 870*214*290 mm Features Dust Filter Delivery Delivery countrywide, Showroom pickup Warranty 1 Year parts warranty, 3 years service warranty, 2 Year compressor warranty Special Price Tk. 62,000
