Product Information
PARAMETERS | UNITS | RAC-26SH | ||
About MODEL | Type of AC : | Split / Window/Light Commercial/VRF/Chill | Details | Split |
Fixed Speed / Inverter | Details | Fixed Speed | ||
Cool only/ Heat & cool | Details | Cool only | ||
Product selling | Country name | Details | Bangladesh | |
Capacity: | Cooling capacity | Watt | 7034 | |
Heating capacity | Watt | N/A | ||
Operating Conditions | Power supply | Rated Voltage & phase | Volts | 230V & Single |
Rated frequency | Hz | 50Hz | ||
Running Condition | Withstanding Operating conditions | °C | 20-43 | |
Cooling Area | sq.ft | 180-240 | ||
Lowest running voltage | Volts | 170 | ||
Highest running voltage | Volts | 264 | ||
Cooling | Capacity at rated condition (If required) | Watt | 7034 | |
Power consumption in rated condition | Watt | 2280 | ||
Performance | Cooling data | SEER/EER/COP (If any special requirement) | W/W | 3.08 |
Cooling Input Current | A | 10.7 | ||
Max. Input Current | A | 13.04 | ||
Indoor Unit Information | General | Indoor side air flow (High) | m3/h | 1100 |
Indoor side noise level (High) | dB(A) | 49 | ||
Dimensions (L*W*H) | mm | 1097 x 329 x 258 | ||
Packing (L*W*H) | mm | 1175 x 405 x 310 | ||
Weight : Net & Gross | Kg | 17±0.5 & 19±0.5 | ||
Motor | Motor Type : Single Phase Induction | Details | Induction (PG) | |
Motors Mechanical output Wattage | Watt | 45 | ||
Capacitor | uF | 3 | ||
Indoor Fan speed (Turbo/High/Medium/Low) | r/min | 1220/1180/1100/1000 | ||
Thermal protector | Yes/ No | Yes | ||
Fan | Dimensions (Dia* Length) | mm | Φ108, L- 841±1 | |
Material of Blades | Details | SAN 30% GF | ||
Evaporator | Rows * Tubes | No's | 2*17 | |
Tube pitch (a) x row pitch (b) | mm | 21 x 12.7 | ||
Hairpin copper tube length | mm | 892 | ||
Tube specification | mm | ODΦ7.0 x 0.25+0.18 IGT | ||
Tube Material & Grade | Details | DHP COPPER, C12200 | ||
Fin spacing | mm | 1.2 | ||
Fin type | Details | Louvered | ||
Fin Material (Bare or Golden/Blue/Silver Coa | Details | Aluminum (Hydrophilic Golden coated) | ||
Control board | Transformer Base/ SMPS Base | Details | SMPS | |
PU/ Protective layer | Details | PU | ||
EMI/EMC compatible | Details | NO | ||
Details | NO | |||
Display PCB : LCD Display/ 7Seg Display/ LED indicators | Details | LED Digit Display | ||
Swing Motors : Qty , Purpose | Details | 2, Left/right, Up/Down | ||
Temperature sensor : Nos & Locations | Details | 2, air inlet, Eva inlet | ||
Other | Filter Type | Details | Mesh Filter | |
Power cord & Plug | Details | Yes, 1.5 Meter | ||
Connecting wire between IDU & ODU : Leng | meter | 3.5 | ||
Connecting tube(CU with insulation) between | meter | 3±0.05 | ||
Outdoor | General | Outdoor side noise level (Turbo/High) | dB(A) | 59-Turbo; 58-High |
Dimension : L*W*H (Including foot & servic | mm | 865 x 370 x 687 | ||
Packing : L*W*H | mm | 935 x 430 x 740 | ||
Weight : Net & Gross | Kg | 46±1 & 52±1 | ||
Max. discharge/Suction pressure | MPa | 4.30/1.30 | ||
Compressor | Preferred Model | Details | Lamda-QXA-F265F050 | |
Type : Fixed speed / Inverter | Details | Fixed Speed | ||
Inverter Frequency Range : Min to Max | Hz | N/A | ||
Locked rotor Amp(LRA) | A | 49.5 at 220V | ||
Thermal protector | Yes/ No | Yes | ||
Over load Protector (Location) | Details | internal | ||
Capacitor (If applicable) | uF | 50 | ||
Fan motor | Motor Type : Single Phase Induction | Details | Induction | |
Motors Mechanical output Wattage | Watt | 55 | ||
Capacitor | μF | 4 | ||
Outdoor Fan speed | R/min | 850 | ||
Thermal protector | Yes/ No | Yes | ||
Unit Information | Fan | Dimensions (Dia* Hight) | mm | Φ420, H-133 |
Number of Blades | No's | 4 | ||
Material of Blades | Details | ABS 20%GF | ||
Condenser | Rows*Tubes | No's | 2*15 | |
Tube pitch(a)x row pitch(b) | mm | 21 x 12.7 | ||
Coil length | mm | 800 OR; 775 IR | ||
Tube outside & Inside diameter | mm | ODΦ7.0 x 0.25+0.18 IGT | ||
Tube Material & Grade | Details | DHP COPPER, C12200 | ||
Fin Type | Details | Slit | ||
Fin spacing | mm | 1.2 | ||
Fin Material | Details | Aluminum (Hydrophilic Golden coated) | ||
Expansion device | Capillary/EEV | Capillary | ||
Material (IF capillary) | Details | Copper Tube | ||
PCB | PCB Protection : PU/ Protective layer | Details | NA | |
Details | NA | |||
PFC: Active/passive | NA | |||
Temperature sensor Nos & Locations | Details | NA | ||
Other | Gas/ Refrigerant Type | Details | R-410a | |
Gas/ Refrigerant Qty | KG | 1.48 | ||
Remote | Yes/No | Pcs | Yes | |
RF / IR Based | Details | IR | ||
Frequency | MHz | 16 | ||
Operating Range | Meter | 8 | ||
Display | Yes/ No | LCD | ||
Packaging | Number of Ply : 3/5/7/Other | Details | 5 Ply | |
GSM | GSM | Indoor: 908±10, Outdoor: 936 ±10 | ||
Details | B+C | |||
BS (Bursting Strength) | psi | 160-180 | ||
EPS (Thermocol) Locations : Bottom, Side, Top, other (Pls Specify) | Details | IDU : Two Sides & ODU: Bottom & Top |
Specifications

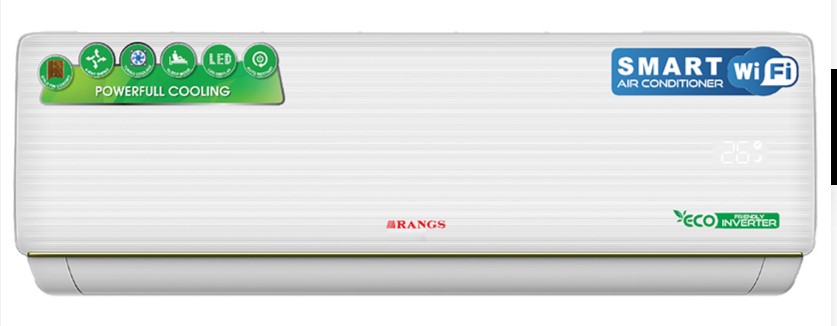

RANGS 01 TON SMART-WI-FI INVERTER SPLIT TYPE AC: PARAMETERS UNITS RAC-26SH About MODEL Type of AC : Split / Window/Light Commercial/VRF/Chill Details Split Fixed Speed / Inverter Details Fixed Speed Cool only/ Heat & cool Details Cool only Product selling Country name Details Bangladesh Capacity: Cooling capacity Watt 7034 Heating capacity Watt N/A Operating Conditions Power supply Rated Voltage & phase Volts 230V & Single Rated frequency Hz 50Hz Running Condition Withstanding Operating conditions °C 20-43 Cooling Area sq.ft 180-240 Lowest running voltage Volts 170 Highest running voltage Volts 264 Cooling Capacity at rated condition (If required) Watt 7034 Power consumption in rated condition Watt 2280 Performance Cooling data SEER/EER/COP (If any special requirement) W/W 3.08 Cooling Input Current A 10.7 Max. Input Current A 13.04 Indoor Unit Information General Indoor side air flow (High) m3/h 1100 Indoor side noise level (High) dB(A) 49 Dimensions (L*W*H) mm 1097 x 329 x 258 Packing (L*W*H) mm 1175 x 405 x 310 Weight : Net & Gross Kg 17±0.5 & 19±0.5 Motor Motor Type : Single Phase Induction Details Induction (PG) Motors Mechanical output Wattage Watt 45 Capacitor uF 3 Indoor Fan speed (Turbo/High/Medium/Low) r/min 1220/1180/1100/1000 Thermal protector Yes/ No Yes Fan Dimensions (Dia* Length) mm Φ108, L- 841±1 Material of Blades Details SAN 30% GF Evaporator Rows * Tubes No's 2*17 Tube pitch (a) x row pitch (b) mm 21 x 12.7 Hairpin copper tube length mm 892 Tube specification mm ODΦ7.0 x 0.25+0.18 IGT Tube Material & Grade Details DHP COPPER, C12200 Fin spacing mm 1.2 Fin type Details Louvered Fin Material (Bare or Golden/Blue/Silver Coa Details Aluminum (Hydrophilic Golden coated) Control board Transformer Base/ SMPS Base Details SMPS PU/ Protective layer Details PU EMI/EMC compatible Details NO Details NO Display PCB : LCD Display/ 7Seg Display/ LED indicators Details LED Digit Display Swing Motors : Qty , Purpose Details 2, Left/right, Up/Down Temperature sensor : Nos & Locations Details 2, air inlet, Eva inlet Other Filter Type Details Mesh Filter Power cord & Plug Details Yes, 1.5 Meter Connecting wire between IDU & ODU : Leng meter 3.5 Connecting tube(CU with insulation) between meter 3±0.05 Outdoor General Outdoor side noise level (Turbo/High) dB(A) 59-Turbo; 58-High Dimension : L*W*H (Including foot & servic mm 865 x 370 x 687 Packing : L*W*H mm 935 x 430 x 740 Weight : Net & Gross Kg 46±1 & 52±1 Max. discharge/Suction pressure MPa 4.30/1.30 Compressor Preferred Model Details Lamda-QXA-F265F050 Type : Fixed speed / Inverter Details Fixed Speed Inverter Frequency Range : Min to Max Hz N/A Locked rotor Amp(LRA) A 49.5 at 220V Thermal protector Yes/ No Yes Over load Protector (Location) Details internal Capacitor (If applicable) uF 50 Fan motor Motor Type : Single Phase Induction Details Induction Motors Mechanical output Wattage Watt 55 Capacitor μF 4 Outdoor Fan speed R/min 850 Thermal protector Yes/ No Yes Unit Information Fan Dimensions (Dia* Hight) mm Φ420, H-133 Number of Blades No's 4 Material of Blades Details ABS 20%GF Condenser Rows*Tubes No's 2*15 Tube pitch(a)x row pitch(b) mm 21 x 12.7 Coil length mm 800 OR; 775 IR Tube outside & Inside diameter mm ODΦ7.0 x 0.25+0.18 IGT Tube Material & Grade Details DHP COPPER, C12200 Fin Type Details Slit Fin spacing mm 1.2 Fin Material Details Aluminum (Hydrophilic Golden coated) Expansion device Capillary/EEV Capillary Material (IF capillary) Details Copper Tube PCB PCB Protection : PU/ Protective layer Details NA Details NA PFC: Active/passive NA Temperature sensor Nos & Locations Details NA Other Gas/ Refrigerant Type Details R-410a Gas/ Refrigerant Qty KG 1.48 Remote Yes/No Pcs Yes RF / IR Based Details IR Frequency MHz 16 Operating Range Meter 8 Display Yes/ No LCD Packaging Number of Ply : 3/5/7/Other Details 5 Ply GSM GSM Indoor: 908±10, Outdoor: 936 ±10 Details B+C BS (Bursting Strength) psi 160-180 EPS (Thermocol) Locations : Bottom, Side, Top, other (Pls Specify) Details IDU : Two Sides & ODU: Bottom & Top
05 Years Compressor & 02 Years Parts & Service Warranty
